Kenwood KFC-1698RS 6.5" Coaxial Speakers
Kenwood KFC-1698RS 6.5" Coaxial Speakers

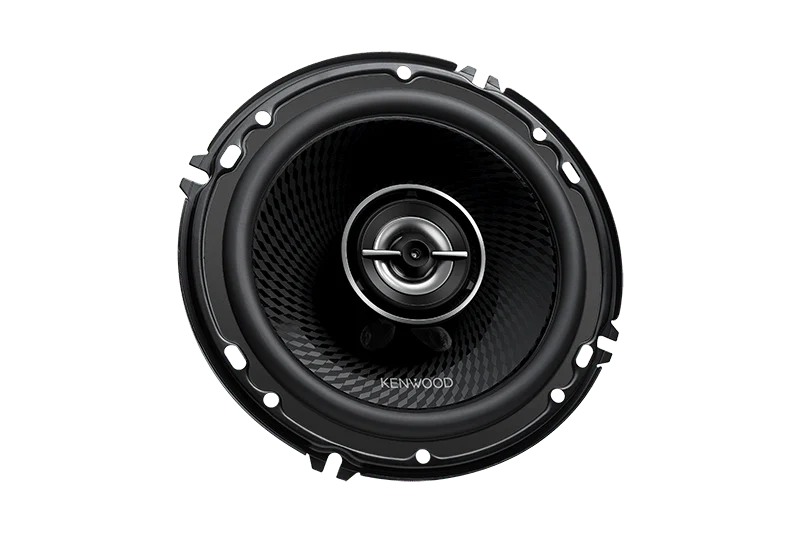

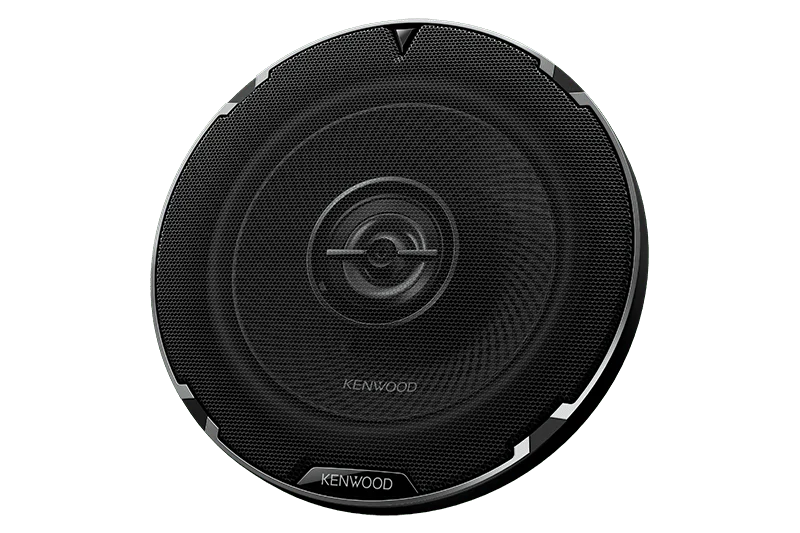

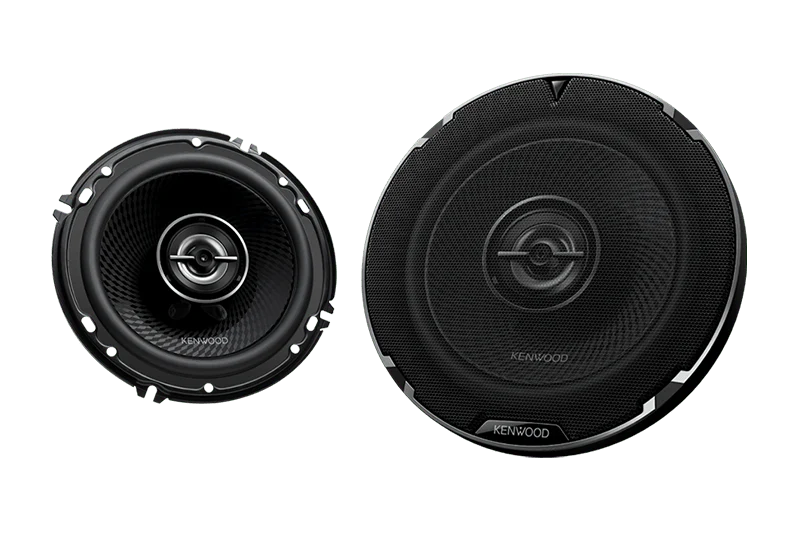

The Kenwood KFC-1698RS is a pair of 6.5-inch (sometimes categorized as 6-1/2") 2-way coaxial car speakers designed to deliver a major audio upgrade over factory-installed systems. Part of Kenwood's RS Series, these speakers combine high power handling with an efficient design to pump out clear, full-range sound.
Diamond Array Pattern
Enhances sound and reduces distortion.
Acoustic Sound Harmonizer
Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.
Sound Field Enhancer
This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.
Factory Location Fit
The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.
Black Painted Yoke and Plate
By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.
Optimized Woofer Damper Shape
Stress leveling points increase durability and provide a smoother sound response.
Specifications

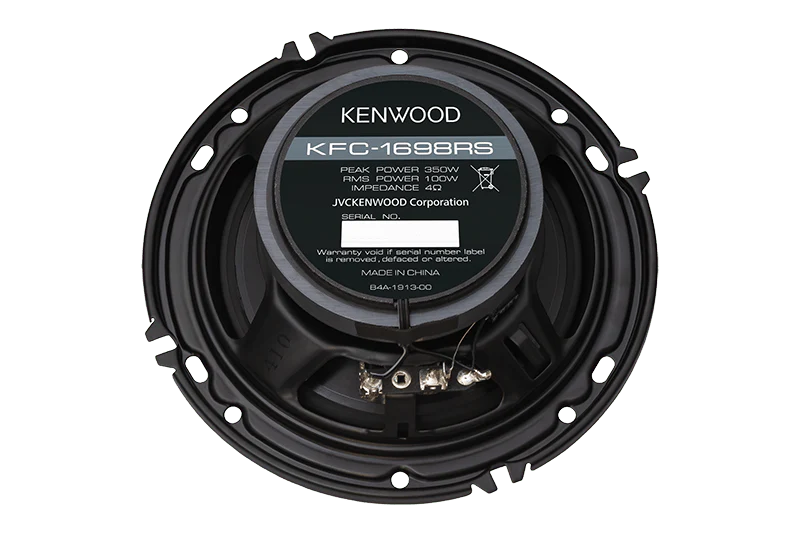

Peak Input Power: 350W
RMS Power: 100W
Sensitivity: 88 dB/ W / m
Frequency Response: 76Hz - 18kHz
Impedance: 4Ω
Woofer Features: 6-1/2 inch Polypropylene Cone
Tweeter Features: 1-3/16 inch Balanced Dome
Cutout Diameter: 4-7/8 inch
Tweeter Height: 3/8 inch

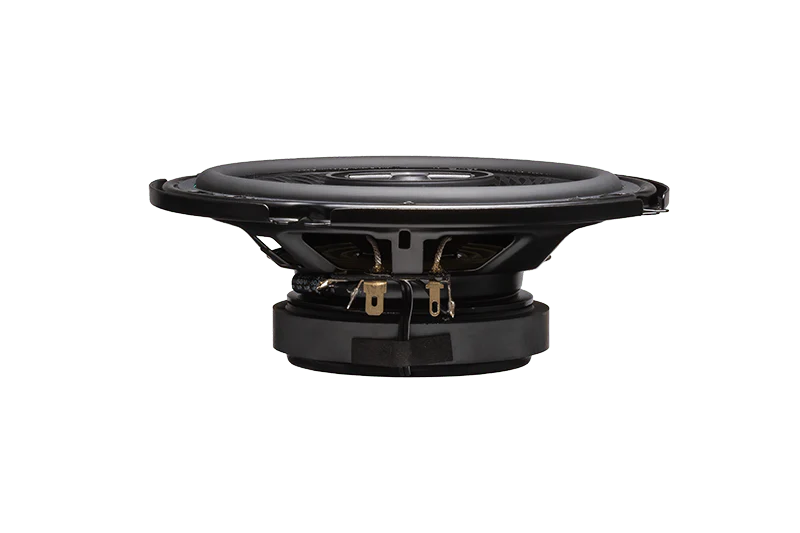

Mounting Depth: 1-7/8 inch
